The Nintendo Switch revolutionized gaming by merging handheld and console experiences into a single hybrid device. Its successor, the rumored Nintendo Switch 2, aims to refine this formula with upgraded hardware. One question remains for players. Why do both Switch models have clearer images and smoother graphics when connected to a TV?
The answer defies intuition—the dock itself doesn’t boost performance. Instead, the Switch intentionally limits its capabilities in handheld mode. This article looks at the clever design behind Nintendo. It shows how power management, heat limits, and user experience shape the Switch’s two roles.
TV Mode Unleashes the Switch’s "True Power"
The Performance Paradox: Less Mobility, More Graphics
Contrary to popular belief, the Switch dock isn’t a magic box that enhances hardware. Instead, handheld mode restricts the console’s capabilities to prioritize portability. Here’s how:
-
GPU/CPU Clock Speeds:
-
In TV mode, the Switch’s NVIDIA Tegra X1 chip runs at full capacity: 768 MHz (GPU) and 1.02 GHz (CPU).
-
In handheld mode, these drop to 307 MHz (GPU) and 1.02 GHz (CPU) to conserve battery.
-
-
Resolution Differences: Docked games often render at 1080p, while handheld mode caps at 720p. Titles like The Legend of Zelda: Breath of the Wild dynamically adjust resolution to maintain performance.
-
Thermal Headroom: The dock’s open design allows better airflow, preventing overheating during intensive tasks. Handheld mode relies on a smaller internal fan, limiting sustained performance.
Key Takeaway: The dock allows the Switch to work at its best. Handheld mode gives up some power for convenience.

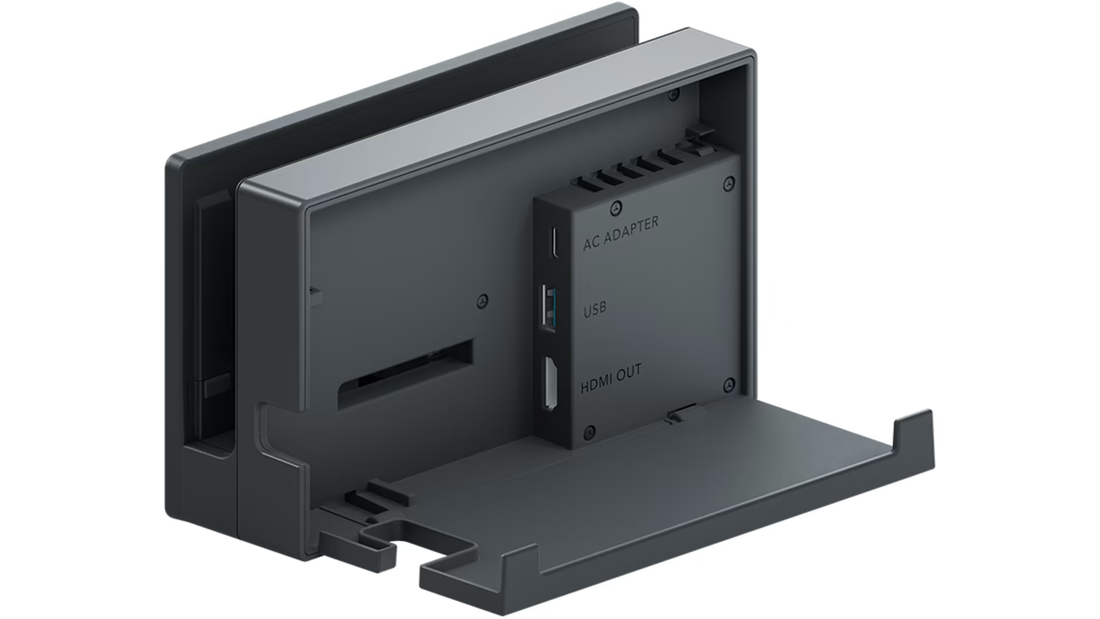

The Switch Dock Demystified: It’s Just a Fancy Adapter
What’s Inside the Dock? Spoiler: No Performance Boosters
The Switch dock is essentially a glorified USB-C hub with three core functions:
-
Power Delivery: Charges the console at 15V/2.6A via USB-C.
-
Video Output: Converts the Switch’s signal to HDMI (1080p/60Hz).
-
Peripheral Connectivity: Allocates bandwidth for LAN adapters, USB controllers, etc.
The Switch 2 Dock: Same Concept, Better Cooling?
The Switch 2 dock will have a built-in fan. However, like its predecessor, it won’t house additional processing hardware. Any graphical improvements will stem solely from the Switch 2’s internal chipset.
Why Handheld Mode Sacrifices Performance for Practicality
The Battery Life Dilemma
Nintendo faced a critical challenge: balancing performance with portability. Here’s why handheld mode operates at reduced specs:
-
Power Consumption:
-
At full throttle, the Switch consumes 16W, draining its 4310mAh battery in ~1 hour.
-
By underclocking the GPU/CPU, power usage drops to 7- 10W, extending playtime to 3-6 hours.
-
-
Thermal Constraints:
-
A smaller fan in handheld mode can’t dissipate heat as effectively as the dock’s passive cooling. Lower clock speeds prevent overheating and noise.
-
-
Display Limitations:
-
The Switch’s 6.2-inch LCD screen (720p) doesn’t benefit from higher resolutions, making 1080p rendering unnecessary.
-
Adaptive Sync: Nintendo’s Clever Workaround
Games like Xenoblade Chronicles 3 dynamically adjust resolution and effects to maintain stable frame rates. This “smart throttling” ensures smooth gameplay without overtaxing hardware.
Conclusion: A Masterclass in Hybrid Design
The Nintendo Switch can change from a portable device to a living room console. This is not just smart marketing; it is a well-designed compromise. By carefully limiting performance in handheld mode, Nintendo balances battery life, heat control, and user comfort.
As players, we enjoy the best of both worlds. We can game on the go and have great experiences at home. This is all thanks to Nintendo’s smart balance of power.

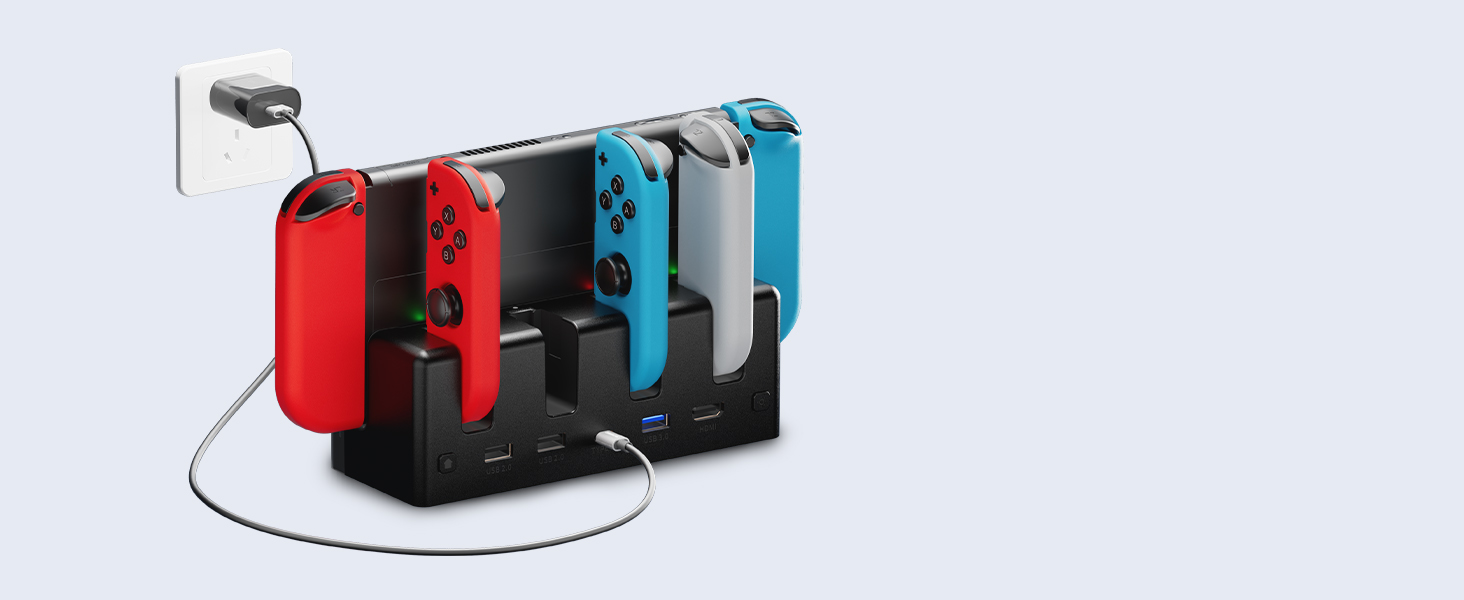

Now that you know about the Nintendo Switch and Switch 2 dock, you can shop for a Nintendo Switch dock more easily. Maybe need a Switch dock that supports up to 4K? Or need a dock that can additionally charge 4 more Joy-Cons? Then you can try FUNLAB Lumindock. Please check the following link: https://funlabswitch.com/collections/funlab-lumindock-nintendo-switch-docking-station
